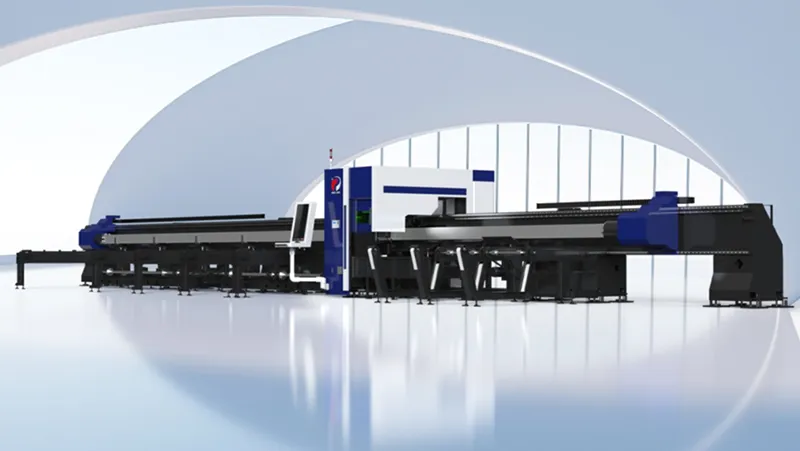

WHIRL PLUS C Series Laser Tube Cutting Machine

Laser cutter system for handling tubes and profiles

WHIRL PLUS C Series Laser Tube Cutting Machine

WHIRL PLUS C Series Laser Tube Cutting Machine

Laser cutter system for handling tubes and profiles

The WHIRL PLUS C series laser tube cutting machine, a standout in subway manufacturing technology, boasts an efficient automatic loading and unloading mechanism for a seamless, intelligent cutting experience with tubes. This advanced metal cutting tool not only automates the handling of subway pipes, minimizing manual loading risks but also features synchronous feeding to reduce wait times and boost productivity. Equipped with WPC9036 and WPC12036 pneumatic square chucks, alongside WPC12050 pneumatic circulation chucks, it ensures a stable, efficient cutting process.

Request a Quote
  • Laser power
    Laser power6,000W-20,000W
  • X axis travel
    X axis travel9500mm/12500mm/12700mm
Laser SystemsLaser Cut Samples

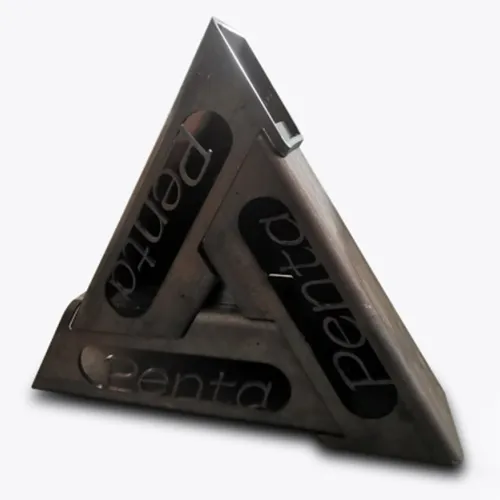

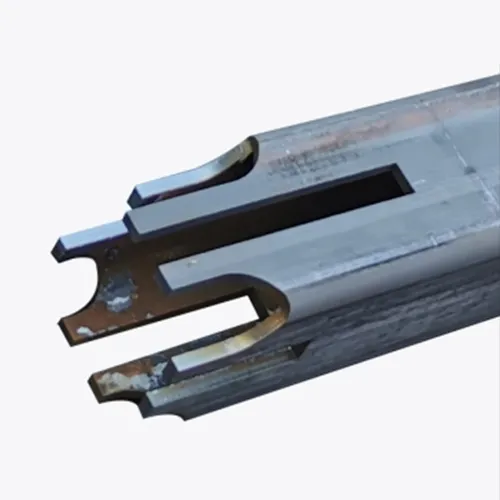

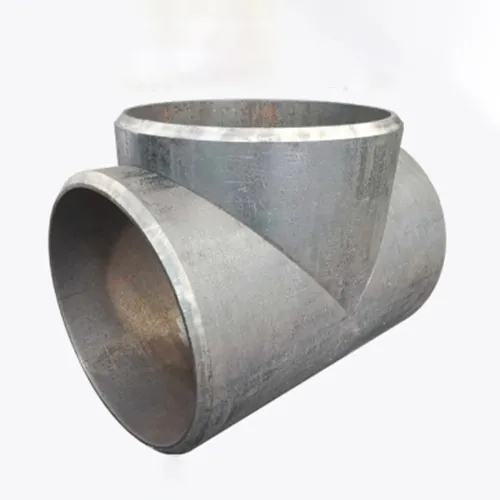

  • Sample
  • Sample
  • Sample
Applications of Laser Cutting

As a leader in the Chinese laser industry, PENTA LASER specializes in the design and manufacture of high performance laser machines for a wide range of industries, including automotive, shipbuilding, agricultural machinery. Contact with us for a full custom laser engineering solution.

Applications
WHIRL PLUS C Series Laser Tube Cutting Machine
Technical Specifications
Laser power 6,000W-20,000W
X axis travel 9500mm/12500mm/12700mm
Tube weight 1200-3000kg
A/P axis rotation N×360°
Maximum speed of linear motion axis 72m/min, 72m/min, 45m/min
Maximum speed of rotary motion axis 75rpm/75rpm/45rpm
Maximum loading capacity 100kg/m, 100kg/m, 200kg/m
Configurations
  • Intelligent Semi-Automatic Loading and Unloading: Facilitates smart, semi-automatic processing of subway pipes, reducing manual handling and enhancing workplace safety.
  • Advanced Configurations: Equipped with C9036 and WPC12036 pneumatic square chucks, and WPC12050 pneumatic circulation chucks for optimized performance.

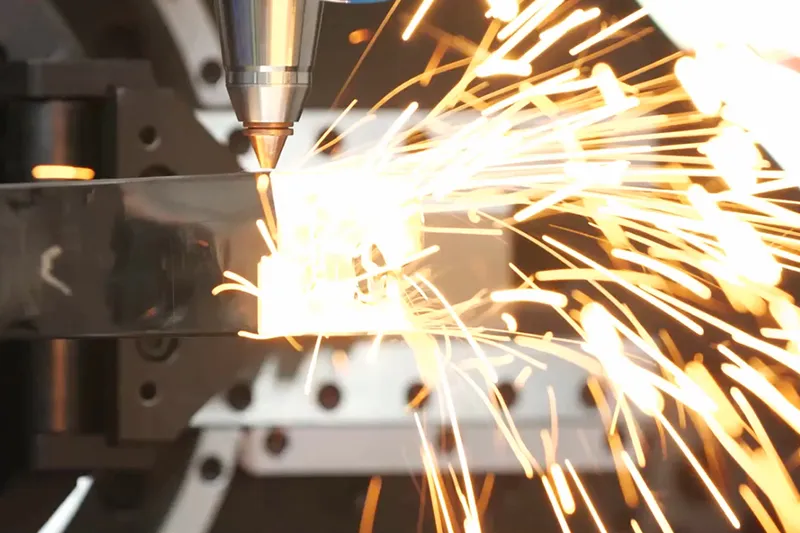

What are the causes of sparks during metal cutting?
Sparks observed during laser cutting typically stem from either inadequate cutting gas pressure/purity or overly rapid cutting speeds. Verifying gas pressure and purity, adjusting cutting parameters, moderating cutting speed, and ensuring optimal gas flow and nozzle positioning can solve the issue.
Can this laser tube cutting machine perform metal marking, etching, and engraving?
Yes, the laser cutting machines offer versatile processing options beyond cutting, including metal marking, etching, and engraving. These capabilities largely depend on the laser head's power, allowing for a wide range of detailed and precision work on metal surfaces.
