GAN Series 3D Laser Cutting Machine

Laser cutter system

GAN Series 3D Laser Cutting Machine

GAN Series 3D Laser Cutting Machine

Laser cutter system

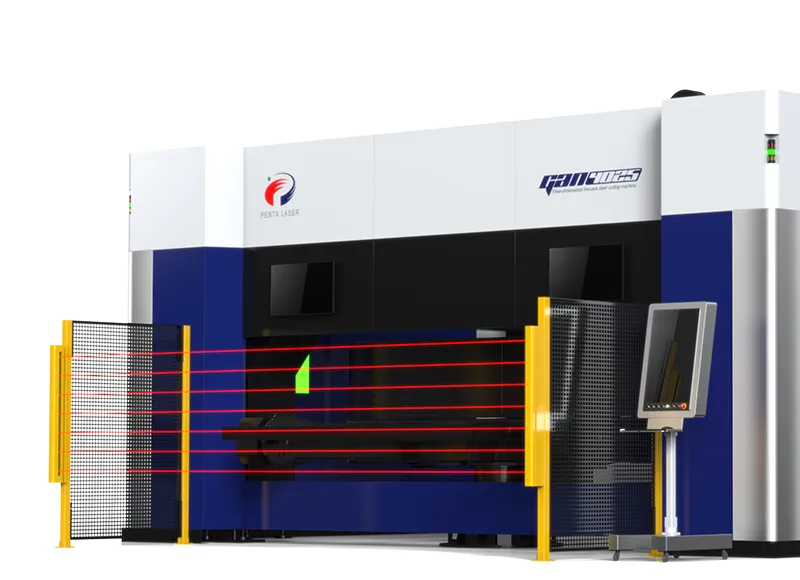

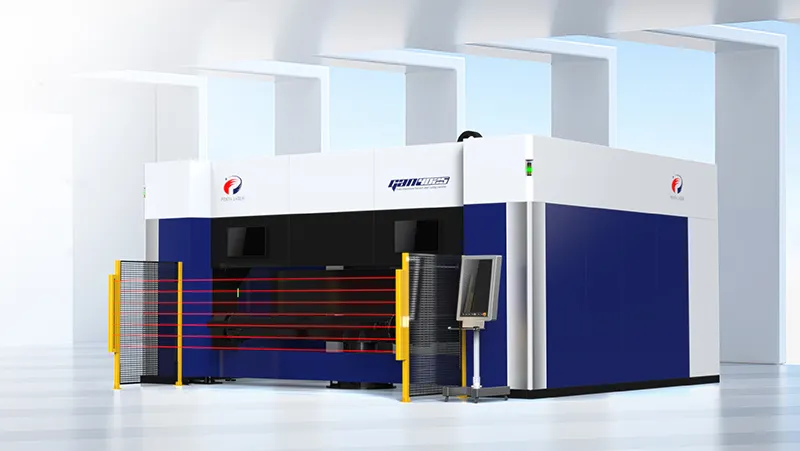

The GAN series 3D laser cutting machine (1-4kW) epitomizes cutting-edge performance tailored to diverse processing requirements. This machine leverages an advanced 3D five-axis system for unparalleled capabilities in three-dimensional space processing. Its distinctive flexibility, high precision, expansive working area, and sophisticated RTCP function render it perfectly suited for handling large workpieces and cutting tasks that demand high accuracy.

Request a Quote
  • Laser power
    Laser power1,000W-4,000W
  • X axis travel
    X axis travel3050-4050mm
  • Y axis travel
    Y axis travel 2050mm
Laser SystemLaser Cut Samples

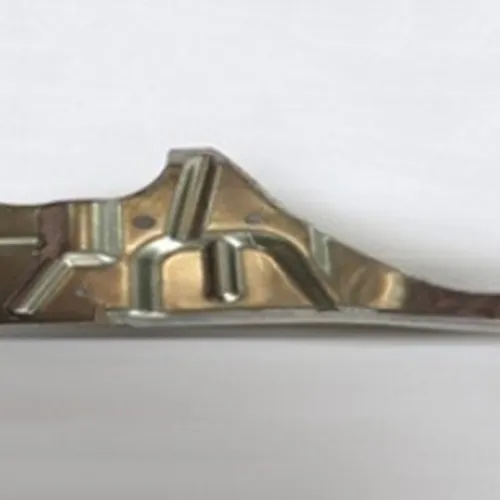

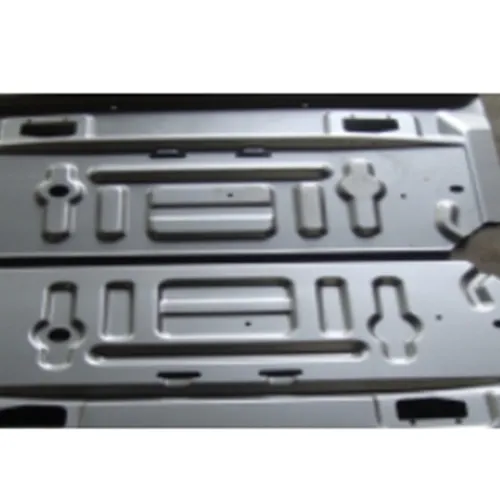

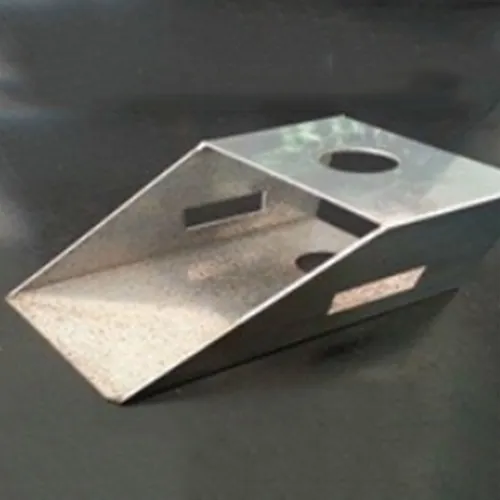

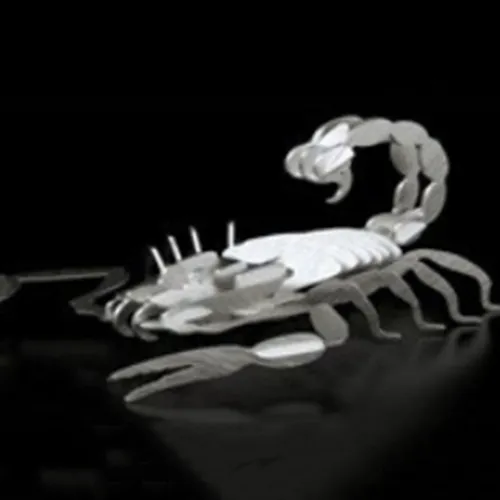

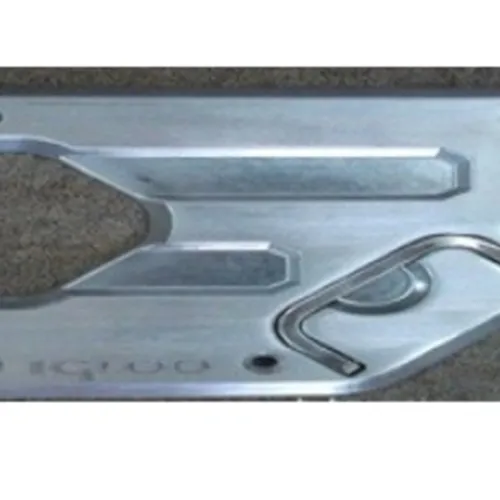

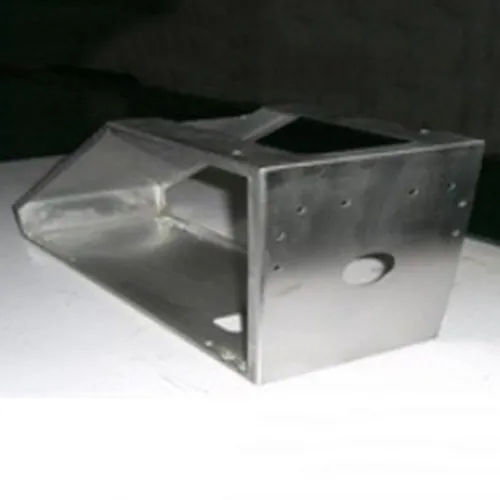

  • Sample
  • Sample
  • Sample
  • Sample
  • Sample
  • Sample
Applications of Laser Cutting

As a leader in the Chinese laser industry, PENTA LASER specializes in the design and manufacture of high performance laser machines for a wide range of industries, including automotive, shipbuilding, agricultural machinery. Contact with us for a full custom laser engineering solution.

Applications
Features
BOLT VII Fiber Laser Cutting Machine
  • Advanced control: The GAN series features a 5-axis system for seamless 3D parts laser welding and cutting, delivering superior processing in three-dimensional space.
  • Intuitive control handle: Features a control handle integrating manual operation buttons, an emergency stop, encoders, and more, all based on a PC unit for enhanced user interaction.
  • Smart 8-inch touch screen: Comes with an 8-inch touch screen, supported by SMART MANAGER software system for straightforward program teaching functionalities.

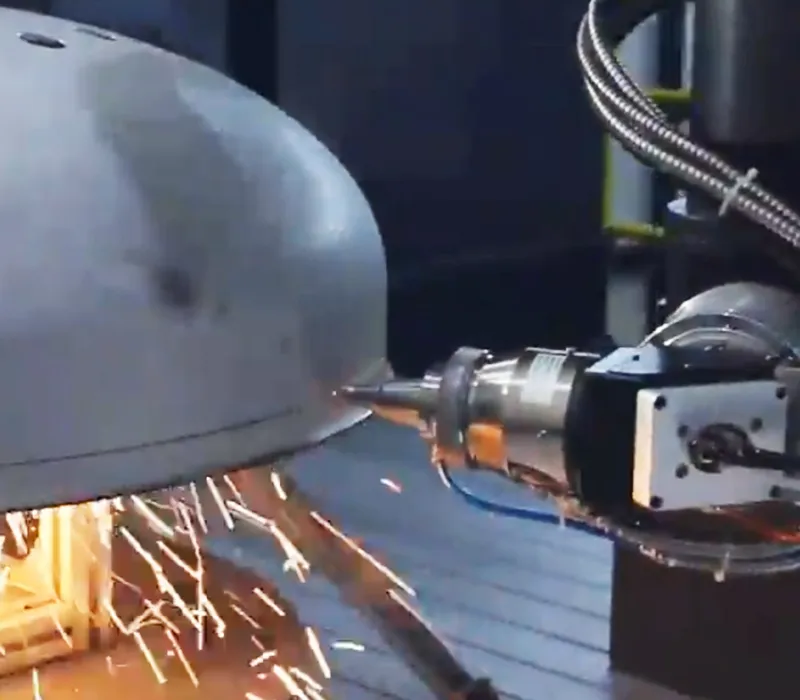

  • Versatile five-axis laser head: Achieves N*360° rotation and a swing of ±135°, facilitating complex cutting angles and high-precision output.
  • Enhanced safety features: Includes a safety light curtain to safeguard personnel by preventing accidental machine access during operation.
Laser Hybrid Welding Machine
Technical Specifications
Laser power 1,000W-4,000W
X axis travel 3050-4050mm
Y axis travel 2050mm
Z axis travel 800mm
A axis travel N×360°
B axis travel ±182°
Linear motion axis repeatability ±0.03mm
Maximum speed of linear motion axis 100m/min
Maximum acceleration of linear motion axis 1G
Maximum speed of rotary motion axis 60rpm
Rotary motion axis repeatability 0.03°
