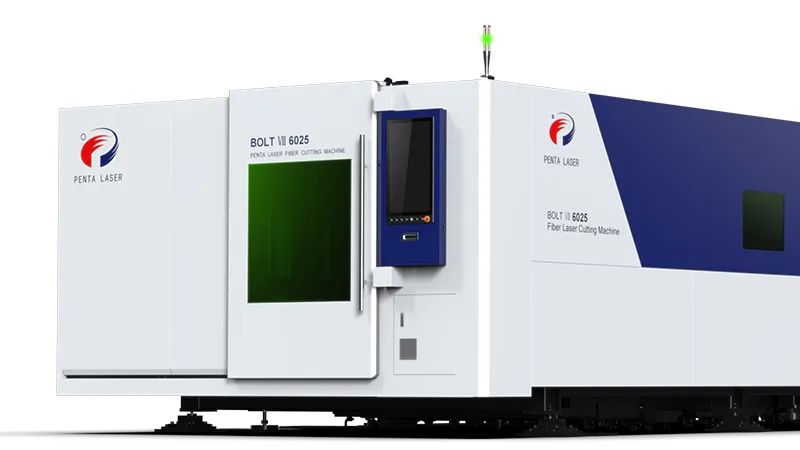

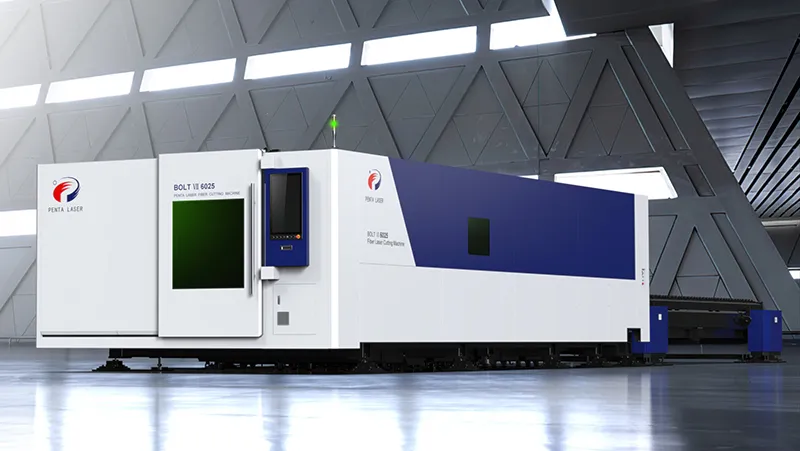

BOLT VII Fiber Laser Cutting Machine

Sheet metal laser cutter for processing various metal materials

BOLT VII Fiber Laser Cutting Machine

BOLT VII Fiber Laser Cutting Machine

Sheet metal laser cutter for processing various metal materials

Our BOLT VII (Enclosed, 6-85kW) fiber laser cutting machine boasts the ability to precisely cut a diverse array of materials including metals and plastics. Engineered for peak performance, it can reach 2.8G-4.0G acceleration, underpinned by the specialized SM system for enhanced automation solutions. Renowned for its high power efficiency and minimal maintenance requirements, the BOLT VII is an ideal choice in sectors such as metal processing, automotive production, and electronics manufacturing.

Request a Quote
  • Laser power
    Laser power6,000W-85,000W
  • Working area (L×W)
    Working area (L×W)3000×1500mm-13000×3000mm (optional)
  • Applicable materials
    Applicable materialsStainless steel, carbon steel, aluminum alloy, brass, copper, and various types of alloy

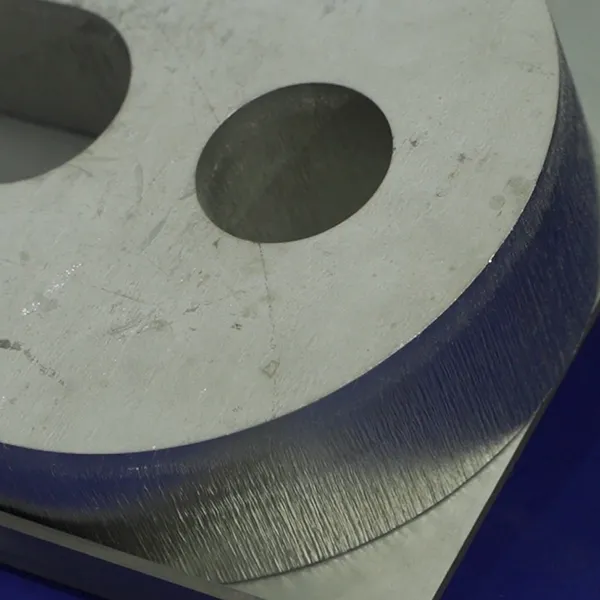

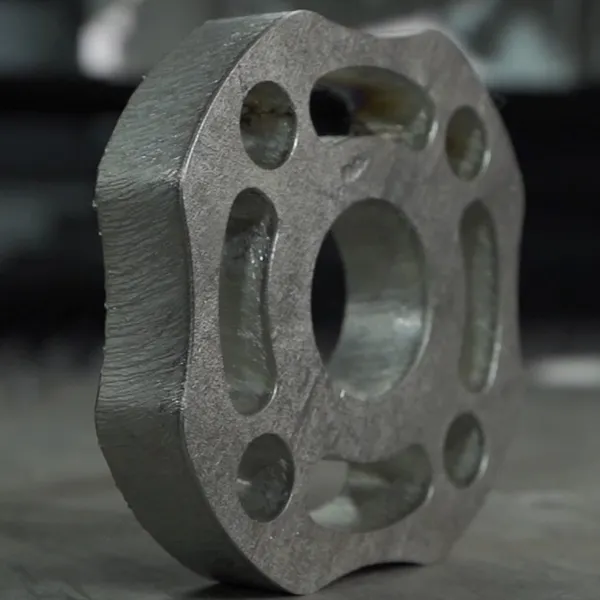

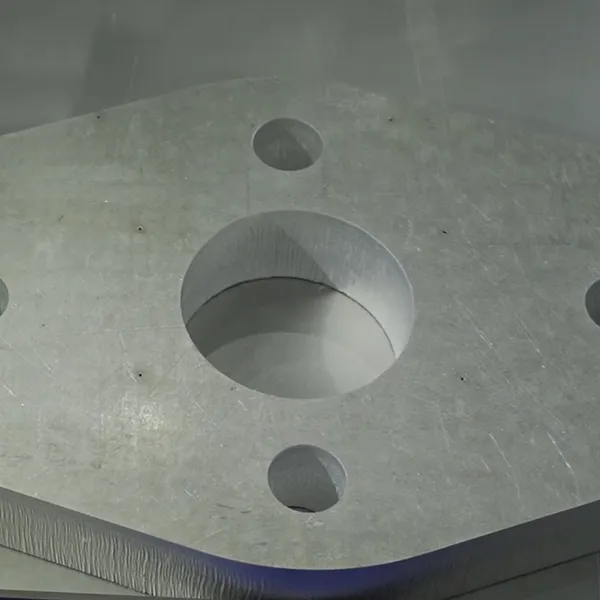

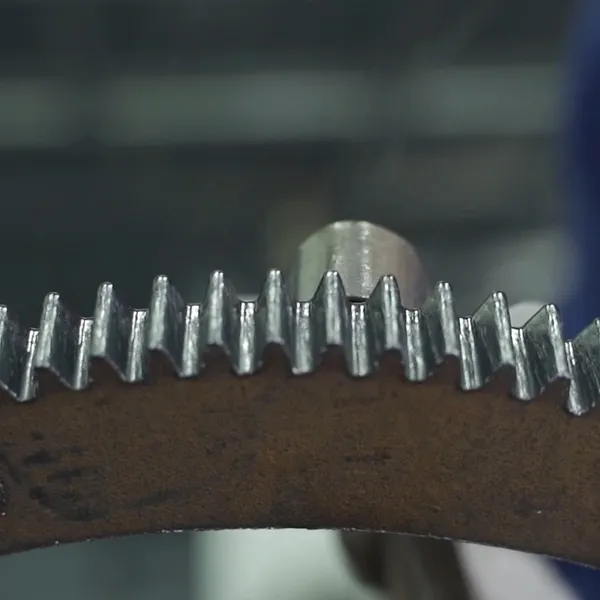

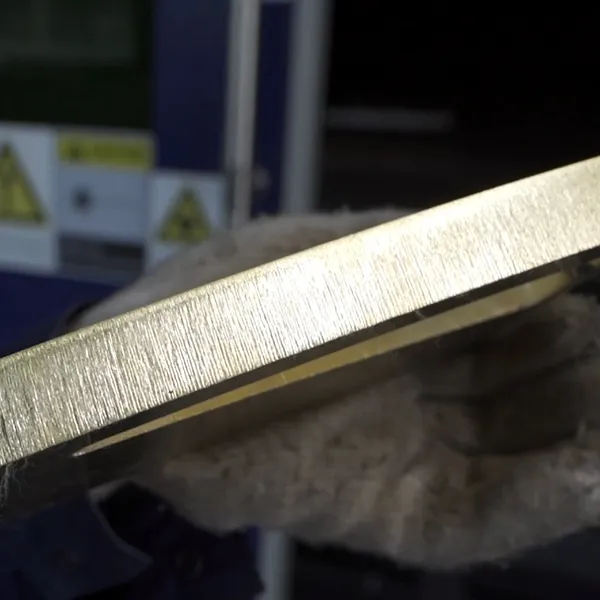

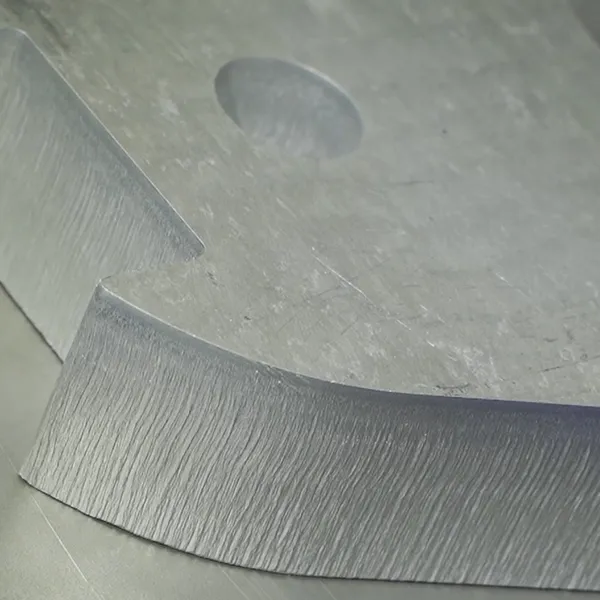

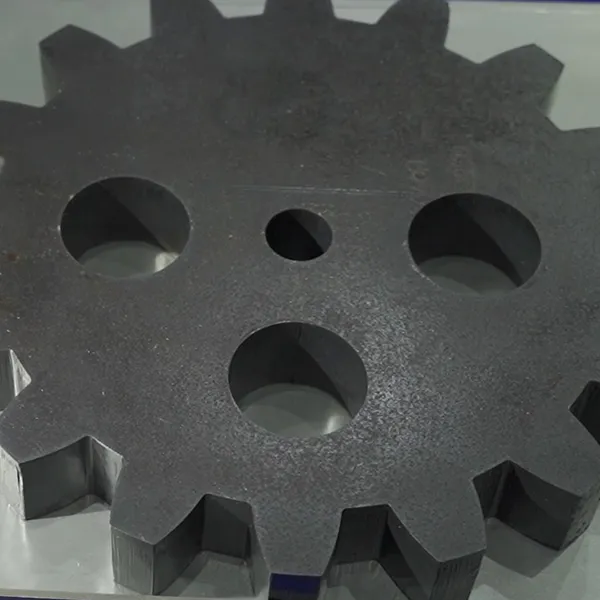

Laser SystemLaser Cut Samples
  • Sample
  • Sample
  • Sample
  • Sample
  • Sample
  • Sample
  • Sample

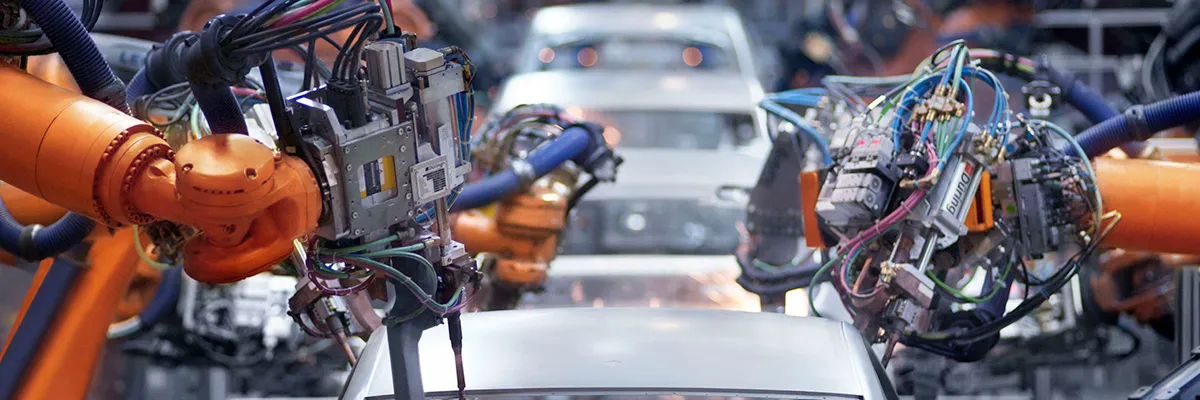

Applications of Laser Cutting

As a leader in the Chinese laser industry, PENTA LASER specializes in the design and manufacture of high performance laser machines for a wide range of industries, including automotive, shipbuilding, agricultural machinery. Contact with us for a full custom laser engineering solution.

Applications
Features
BOLT VII Fiber Laser Cutting Machine
  • Ultra-high laser power (6-85kW)
  • Stable operation with detached bed design
  • Precise touchscreen control with SM system
  • 4G acceleration
  • Intelligent water-cooled cutting head for cutting stability
  • Advanced 16-section dust collection for cleaner and safer work environment
  • Automatic gas distribution device ensuring precise control of auxiliary gases' flow and pressure
BOLT VII Fiber Laser Cutting Machine
Technical Specifications
Laser power 6,000W-85,000W (optional)
Working area (L×W) 3000×1500mm-13000×3000mm (optional)
Maximum acceleration 2.8G-4.0G
Maximum running speed 200m/min;
240m/min (depending on machine model)
Mechanical repeatability 0.06-0.08mm
Laser source option IPG/RAYCUS/MAX/JPT
Configurations

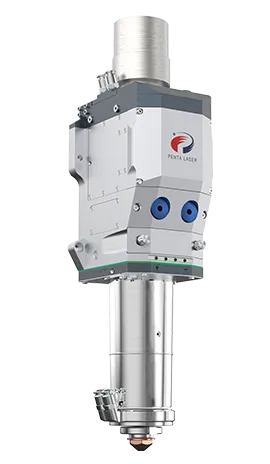

Laser Head

Laser Head
The Bolt7 features an exclusive laser head developed in collaboration with PRECITEC, designed for swift power escalation without compromising the power of the laser beams.

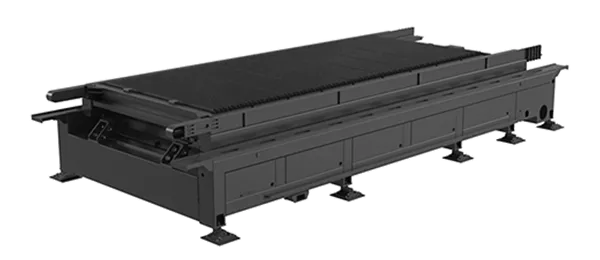

Separate Bed

Separate Bed
Utilizes a gantry for more flexible and efficient operation. The workbench's separation from the bed minimizes internal stress, ensuring longevity and stability.

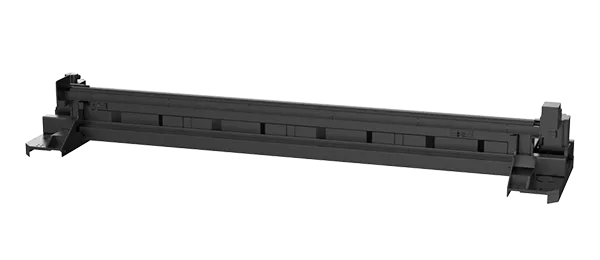

Lightweight Beams

Lightweight Beams
The steel beam is used to ensure the high rigidity, thus enabling the beam capable of long-term cutting without being deformed, and the cutting accuracy is more stable.

Advantages of Fiber Laser
Fiber laser source, a category of solid-state lasers, boast a significantly smaller focus diameter during cutting or engraving operations, achieving cutting intensities up to 100 times greater than CO2 lasers. Systems equipped with fiber laser heads are exceptionally suited for metal cutting, marking, and engraving due to their precision and efficiency.
Laser Engraver vs. Laser Cutter
Laser engravers and cutters share the same foundational technology, designed primarily for sheet metal processing. Our laser machines are versatile, capable of both engraving and cutting tasks, allowing for seamless switching between applications to meet diverse production needs.
