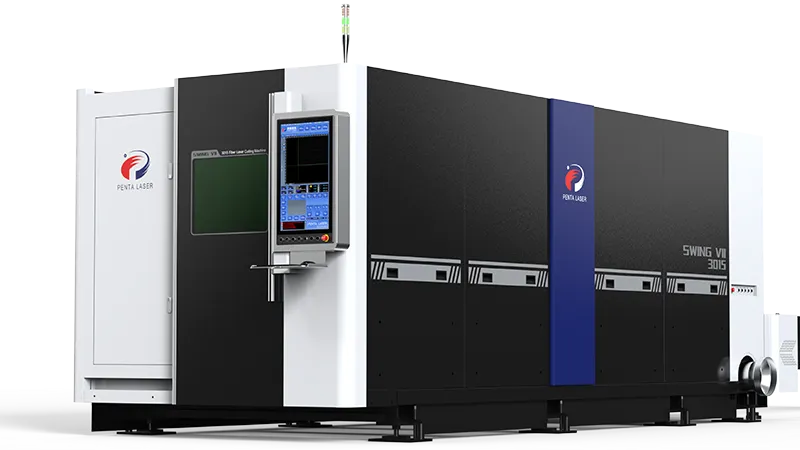

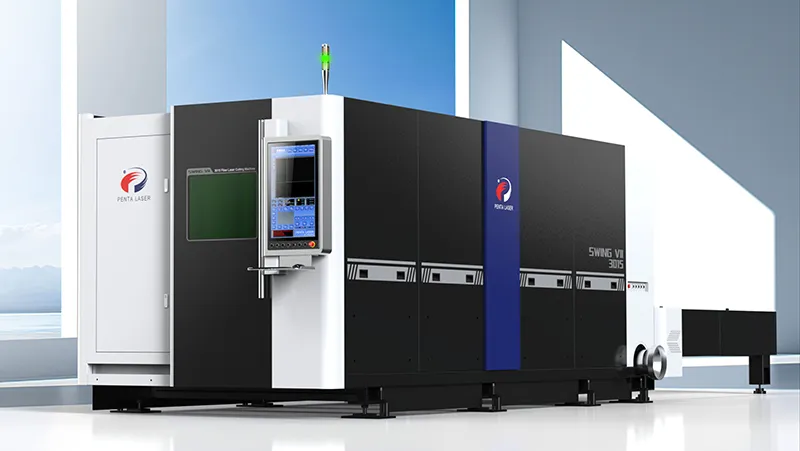

SWING VII 3015 Fiber Laser Cutting Machine

Sheet metal laser cutter for processing various metal materials

SWING VII 3015 Fiber Laser Cutting Machine

SWING VII 3015 Fiber Laser Cutting Machine

Sheet metal laser cutter for processing various metal materials

The SWING VII 3015 (Enclosed, 6-12kW) fiber laser cutting machine is engineered for sustained operation over extended periods. It boasts an impressive 1.5G acceleration capability and an intelligent laser head, which incorporates a water-cooled design to maintain consistent performance even under high power cutting conditions. Equipped with the sophisticated SM system, it allows for precise touch-based operation and supports seamless automation upgrades. This makes the SWING series a versatile and reliable choice for a wide range of industries, including metal processing, automotive manufacturing, electronic equipment production, etc.

Request a Quote
  • Laser power
    Laser power6,000W-12,000W (optional)
  • Working area (L×W)
    Working area (L×W)3000×1500mm-13000×3000mm (optional)
  • Applicable materials
    Applicable materialsLow carbon steel, stainless steel, aluminum magnesium alloy, titanium alloy, high temperature alloy, etc.
Laser SystemLaser Cut Samples

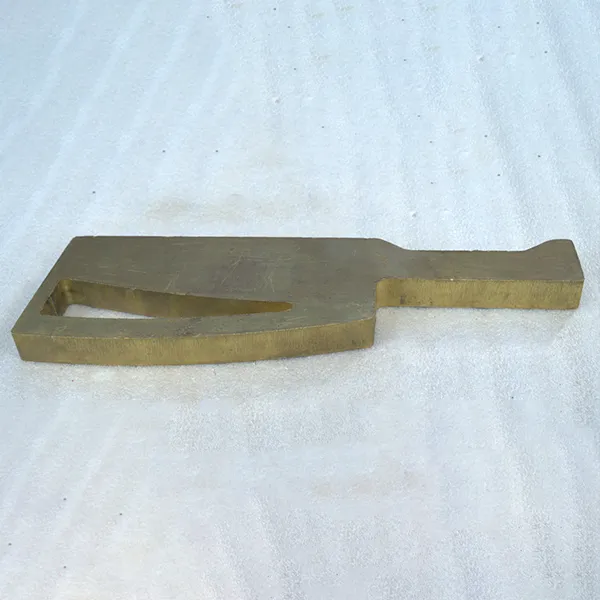

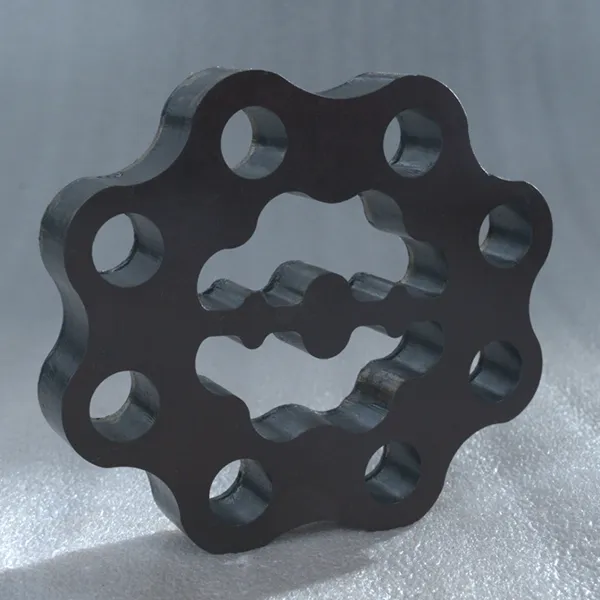

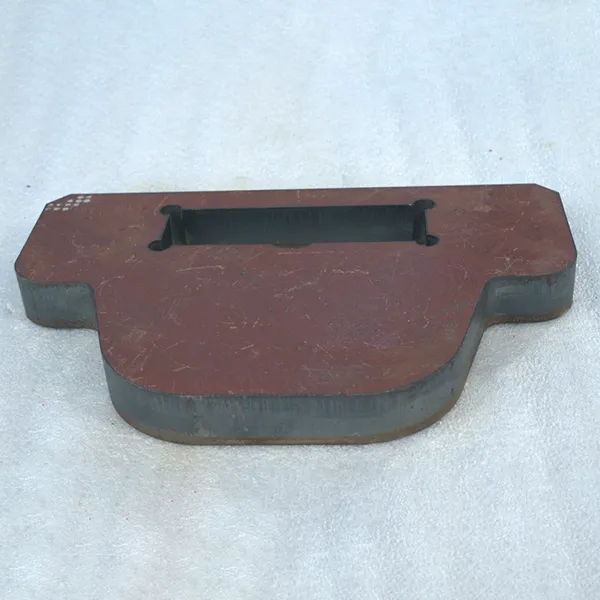

  • Sample
  • Sample
  • Sample
Applications of Laser Cutting

As a leader in the Chinese laser industry, PENTA LASER specializes in the design and manufacture of high performance laser machines for a wide range of industries, including automotive, shipbuilding, agricultural machinery. Contact with us for a full custom laser engineering solution.

Applications
Features
SWING VII 3015 Fiber Laser Cutting Machine
  • Laser power (6-20kW)
  • The bed adopts an integral hollow structure, welded and formed by high quality tubes and sheets, and precision machined after secondary aging treatment. It has high strength and high precision.
  • SM system enables precise operation via touchscreen controls.
  • The welded steel beam features a lightweight honeycomb design.
  • Advanced laser head with auto-focus, power resume, and anti-collision functions.
  • Water-cooling system ensures reliable operation during intense cutting tasks.
SWING VII 3015 Fiber Laser Cutting Machine
Technical Specifications
Laser power 6,000W-12,000W (optional)
Working area (L×W) 3000×1500mm
Maximum acceleration 1.5G
Maximum running speed 140m/min
Mechanical repeatability 0.06mm 0.02mm
Laser source option IPG/RAYCUS/MAX/JPT
Configurations

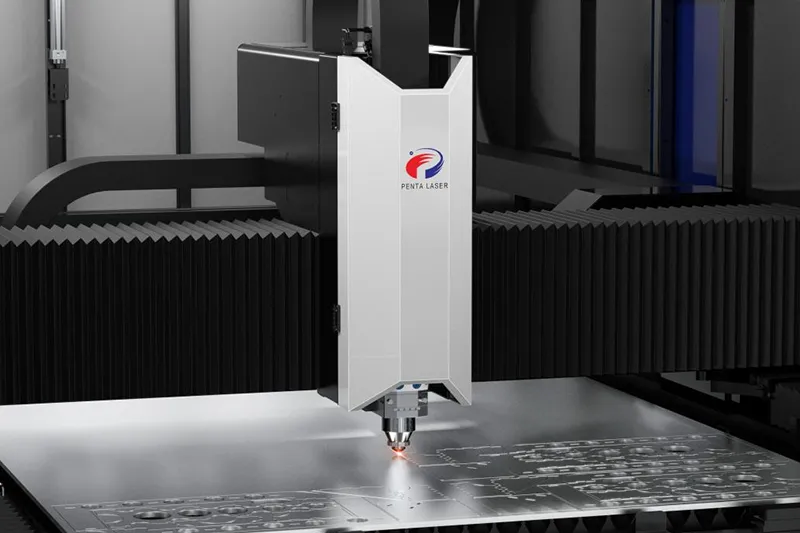

Laser Head

Laser Head
The Bolt7 features an exclusive laser head developed in collaboration with PRECITEC, designed for swift power escalation without compromising the power of the laser beams.

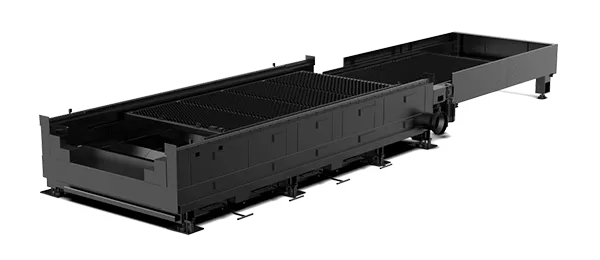

High-Strength Bed

High-Strength Bed
The SWINGVII 3015 (enclosed, 6-12kW) fiber laser cutting machine is equipped with a gantry for more flexible and efficient operation. The high-strength tube-sheet welded bed ensures long service life and high stability.

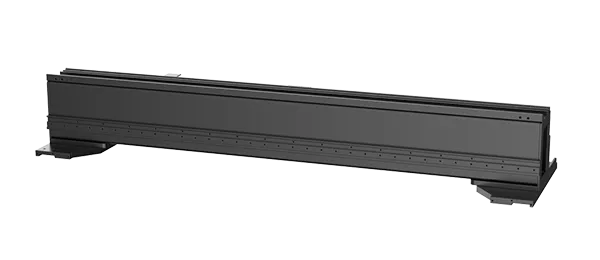

Lightweight Beams

Lightweight Beams
The welded steel beam features a lightweight honeycomb design.

Can a laser system engrave and cut at the same time?
Yes, our industrial laser systems are engineered to perform both engraving and cutting operations efficiently. We provide a diverse array of metal processing equipment capable of handling various materials, each fitted with specific functionalities like cutting tables and precision lenses to optimize for the intended task.
What are the advantages of a large-format laser cutting system?
Large-format laser cutting systems offer an extended table travel, allowing for processing of a wider range of materials in terms of types and sizes. They feature higher power settings that enable smoother metalworking processes, producing exceptionally clean and flat metal surfaces post-machining. This capability enhances the overall quality and precision of the output, making it ideal for demanding industrial applications.
