MJ Series 3D Gantry Laser Welding Machine

Laser welding system

MJ Series 3D Gantry Laser Welding Machine

Laser welding system

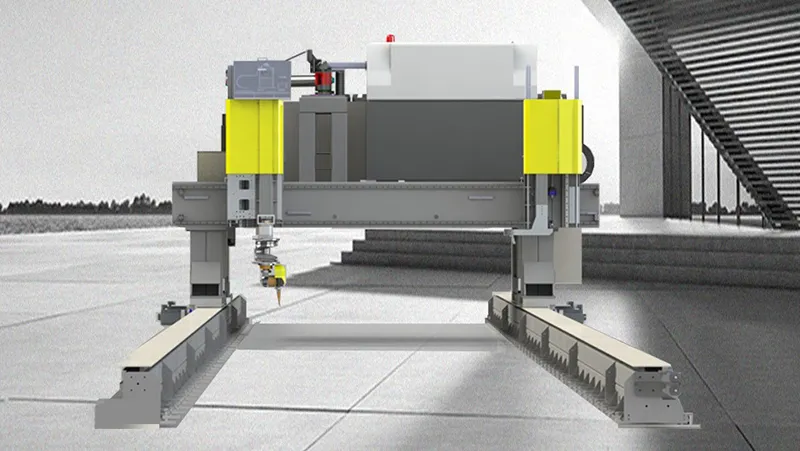

Our MJ Series 3D gantry laser welding machine stands out for its versatile welding capabilities, offering partitionable and through-length component welding to address a variety of requirements. Featuring a stable double-gantry optical path system and a versatile compression shaft for varied joint treatments, this equipment boasts automatic focus adjustment for precision. Equipped with the user-friendly Siemens 840DSL CNC system and a comprehensive real-time monitoring system, the MJ series ensures safety while delivering efficient, stable, and precise welding solutions, making it a preferred choice for advanced welding applications.

Request a Quote

X axis500mm-30m
Y axis500mm-5000mm
Z axis 200mm-1500mm

Applications of Laser Welding

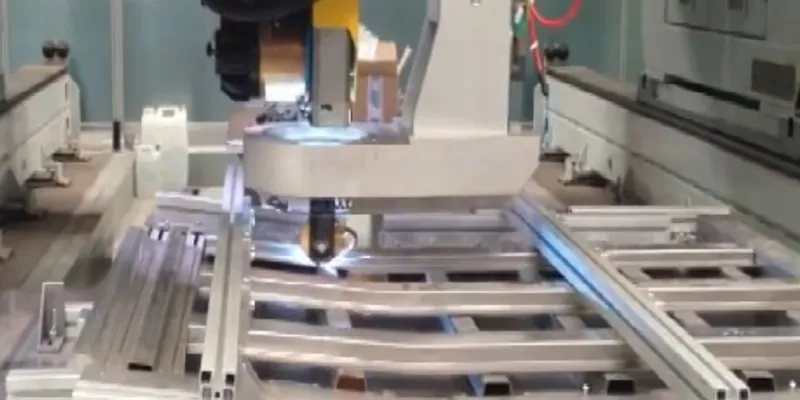

Ideal for intricate welding tasks such as the construction of railway locomotive body side walls, end walls, roofs, aircraft skins, and joints.

Technical Specifications

Axis travel	X axis	500mm-30m
	Y axis	500mm-5000mm
	Z axis	200mm-1500mm
Repeatability	±0.02mm
Laser power	1,000W-20,000W (optional)

Features

Flexible welding methods: Supports both partitionable welding and through-length component welding, accommodating a broad range of welding requirements.

Stable optical path: Supported by two gantries, the stable optical path ensure consistent laser transmission.

Adaptable compression device: Comes with a hold-down shaft to cater to diverse joint types, enhancing the flexibility and applicability of the welding process.

User-friendly CNC system: Utilizes the Siemens 840DSL CNC system, known for its superior dynamic response and precision control, coupled with an easy-to-navigate user interface.

Comprehensive monitoring: Equipped with a real-time monitoring system for complete oversight of the welding process, ensuring optimal safety and quality.

Versatile functionality: Capable of performing laserself-fluxing welding, laser welding with wire filler, laser hybrid welding. Offers options for universal compression rollers and includes features for weld tracking and weld quality monitoring, making it a comprehensive solution for varied welding needs.
